7 inch Truck HD AHD digital Rear View Monitor for Car

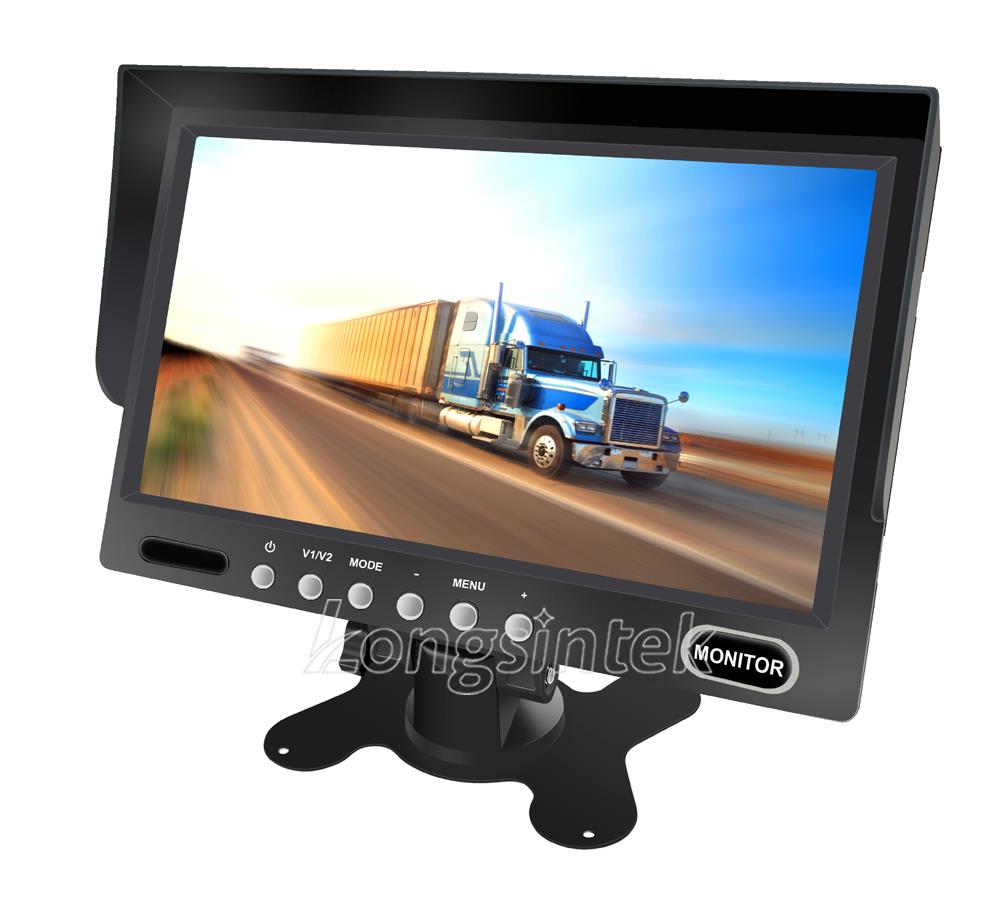

7" Stand Alone Monitor(Non-detachable sunshade)

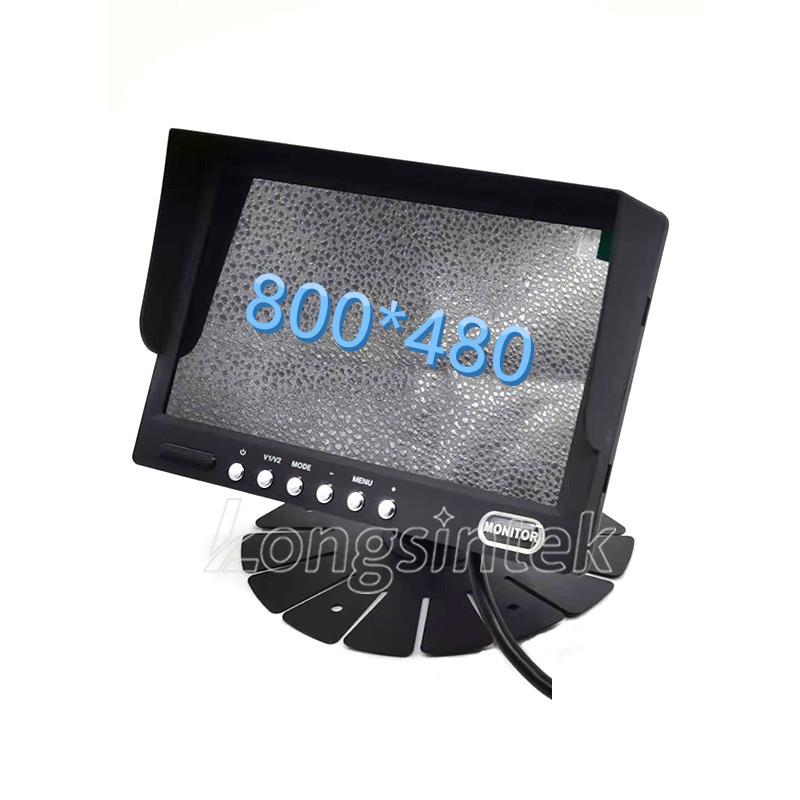

1.Resolution: 800*R.G.B*480,Brightness:350-400cd/m2
1024*R.G.B*600,Back Light Luminance:LED, 500-650cd/㎡ (AHD)
2.View angle:L/R 70°,UP:50°,down: 70° (HD)
L/R:85°,UP:85°,down:85° (AHD)
3. HD:2 way video input,1 way audio input(V2) AHD: 2 channel AHD video input, support CVBS/ 720P/ 960P/1080P Video,1 way audio input(V2)
4.Automatically switch to V2 when reversing
Reference point for reverse gear setting
5.System:PAL&NTSC auto-switching
6.Power supply: DC9-36V,12V output
7.High-low voltage protection&short circuit protection
8.Working temperature:-20℃ to70℃
Storage temperature:-30℃ to 80℃
9.Apearance color: black rubber painted
10.Bracket:Butterfly bracket(703)/fan bracket(903)/Suction Cup holder/Headrest frame

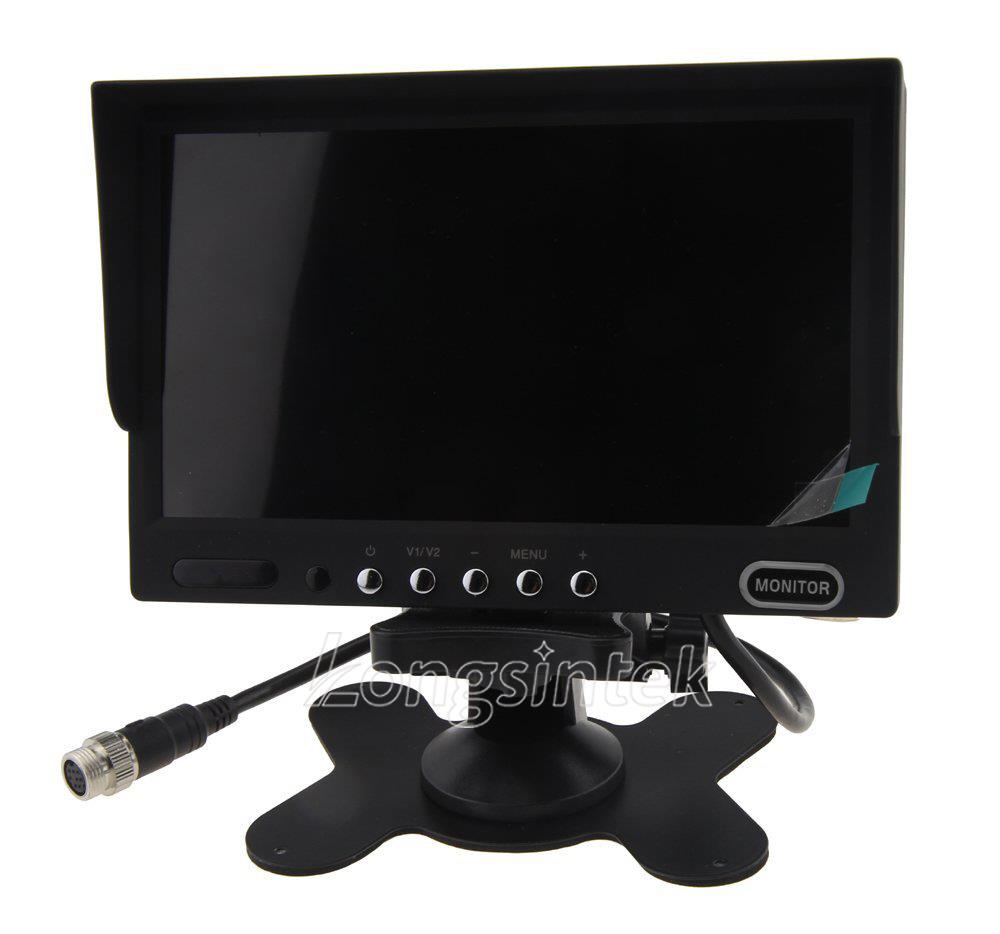

11. RCA/ 4pin connector for choice
HD Verstion Specfications:
|
Screen Ratio |
16:9 |
|
Back Light Luminance |
LED, 350-400cd/square meter |
|
Resolution |
480xRGBx800 |
|
Compatible system |
NTSC / PAL (automatically) |
|
OSD control |
Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian,Dutch, Simplify Chinese) |
|
View angle |
Hor. L(70) R(70) Ver. UP(50) DOWN(70) degree |
|
Image reversion |
UP/Down and Left/Right |
|
Power requirement |
12V DC (12-24V DC optional) |
|
Power consumption |
5W |
|
Storage temperature |
-30 to 80 degree |
|
Working temperature |
-20 to 70 degree |
|

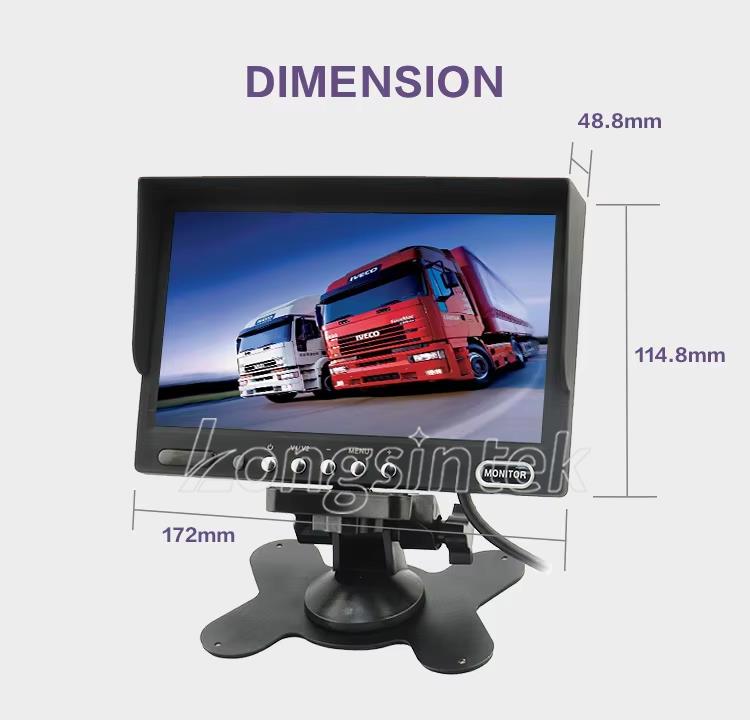

Size |
172x115x24 mm Headrest frame Dimension: 194*133*25MM |
|
Weight |
312g |
|
Key color |
Silvery color |
|
AV Inputs |
2 way video input |
|
Number of Trigger and display |
1 trigger |
|
Optional functions |
4 PIN connector |
|
Other features |
OSD menu, Remoter control, Sunshade design around, Built-in speaker |
|

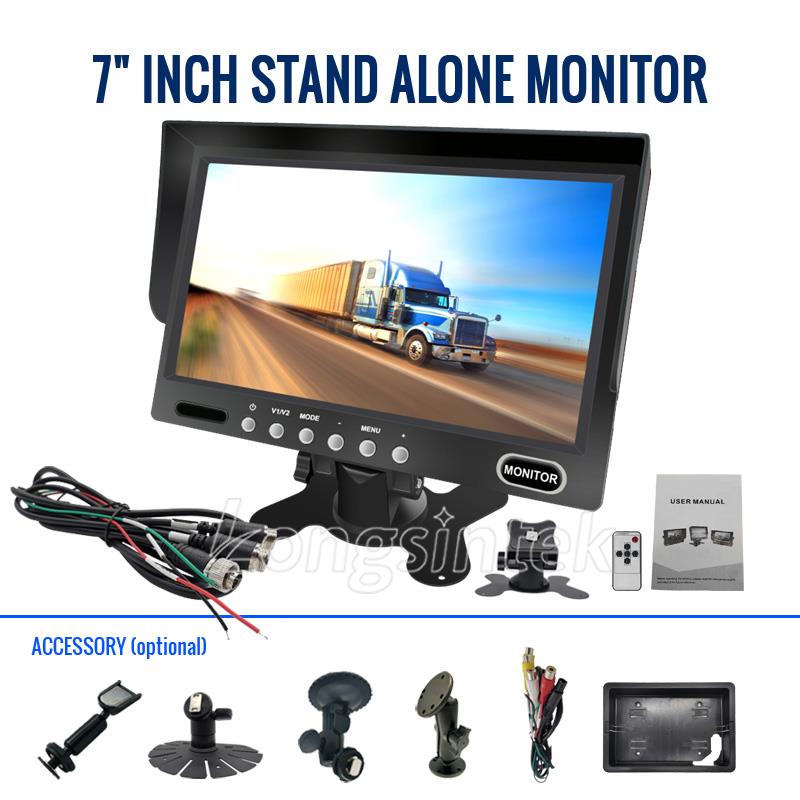

Accessories |
Remote controller, Power supply cable , User manual, Bracket, Connector conversion line |
|
Package |
10pcs/box net weight:8.6KGS gross weight:9.4KGS M: 54.7*36*21.6cm |
